Noyafa / NF-820 / Underground Cable Finder Anti-Interference Wire Tracker

0 reviews   0 reviews  |   Write a review
1,800.00£ Ex Tax: 1,800.00£
Availability:   In Stock

Brand: Noyafa
Product Code: NF-820


Main Features:
1.Locate the wire towards which high or low voltage with alligator clip that can access AC220V high voltage without burning equipment .
2.No interference completely under any current or external environment when cable hunting.
3. The alligator clip and socket can be used at the same time.

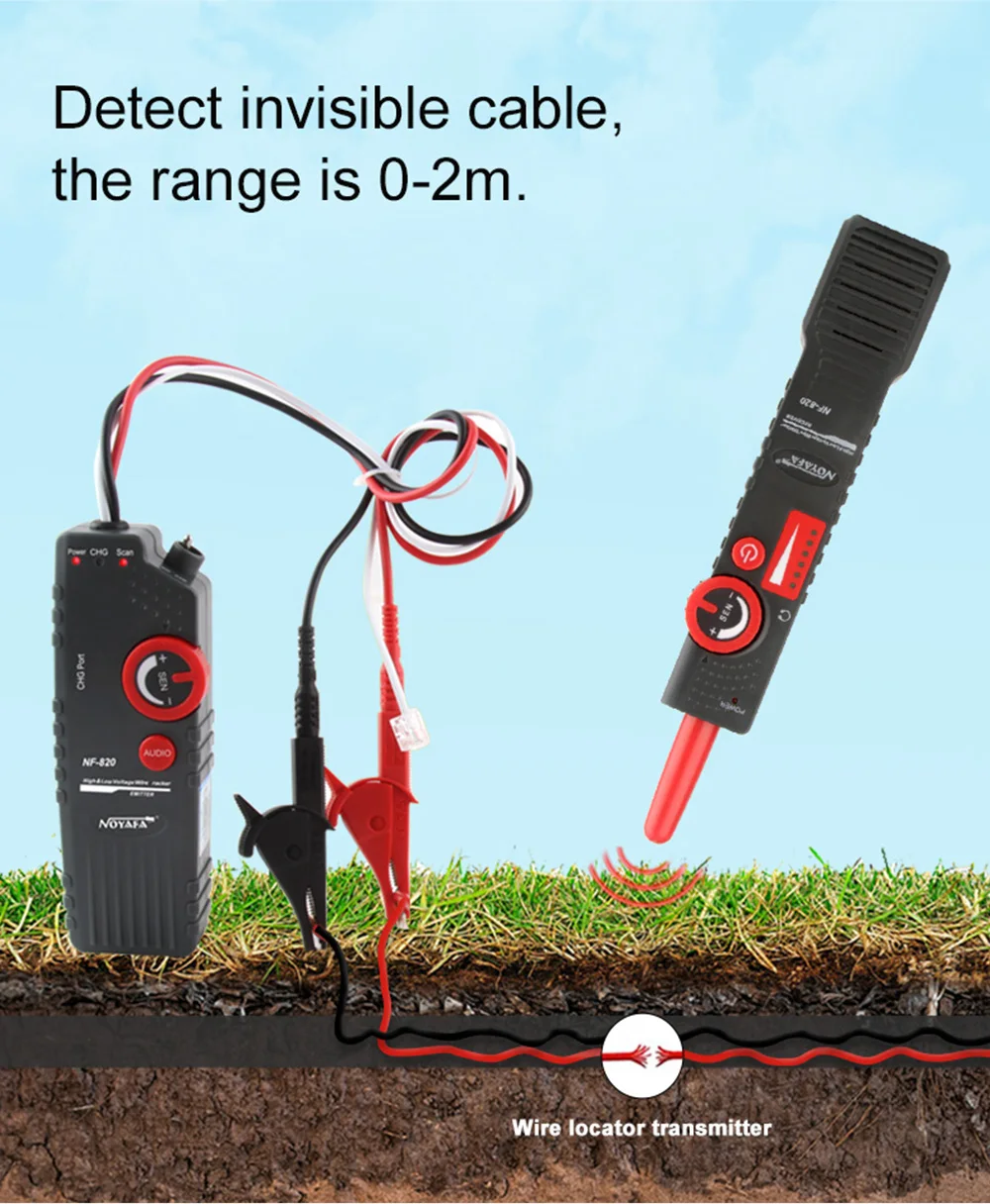

4.The detection range is 0-2m deep and cable length 2000m for SCAN.
5.Amplifier probe signal has a light intensity and power light color to remind.
6.The target cable is under the floor slab, the ceiling or in the wall are not affected to be hunted.
7.The transmitting and receiving power can be adjust according to the actual situation.
8.The emitter with large capacity lithium battery, can be used rechargeable.


Function description:
* Locate the underground cable route and towards.
* Tone Generator signal strength can be adjusted from (0 ~ 3 m).
* Scan single cable, 2 core and multiple core wire.
* Low battery display.
* Polarity judgment.
* The emitter with charging mode.


Accessories Included:
Tone Generator      x 1pcs
Amplifier probe    x 1pcs
5V1A Charger    x 1pcs
USB Charger cable    x 1pcs
Earphone      x 1pcs
Manual       x 1pcs
Certificate of approval    x 1pcs
Toolkit    x 1pcs
Color box    x 1pcs


Technical indexes:
NF-820Transmitter specifications
Max. distance of transmission    ≥2000m
Max. working current    40mA-50mmA±10%
Volume Regulate Function    Audio volume level control
Signal detect deep    0-2m
Charge voltage    800mA
Max. signal voltage    8Vp-p
Voltage indicate    low 3.4v LED will flash
Battery Type    DC 3.7V
Dimensions (LxWxD)    152 x 55 x 34mm
NF-820 Receiver specifications
Power supply    DC9.0V(NEDA 1604/6F22) x 1pc
Max. working current    40mA-50mmA±10%
Voltage indicate    low 6v LED will flash
Work temperature    一10℃-+50℃
Work humidity    30%-60%
Dimensions (LxWxD)    252x 45 x 28mm


Applied range:
* The cable wiring, weak current system of integrated wiring circuit.
* Communication cabling, home decoration system.
* The telephone system, computer network and other metal conductor  fields.
* Installation and maintenance of utility.


Package Include:

1X NF-820 wire tracker
