Noyafa / NF-806R / Cable locator Wire Tracker Buzzer Tester

0 reviews   0 reviews  |   Write a review
750.00£ Ex Tax: 750.00£
Availability:   In Stock

Brand: Noyafa
Product Code: NF-806R


Features:

  1. Check and find the needed cables among so many cables in one time.

  2. Continuity test — wiremap for Lan cables.
  3. Diagnose the breakage, open, short, cross.

  4. Visible indication: pin-to-pin cable map for individual cable (not by pairs).

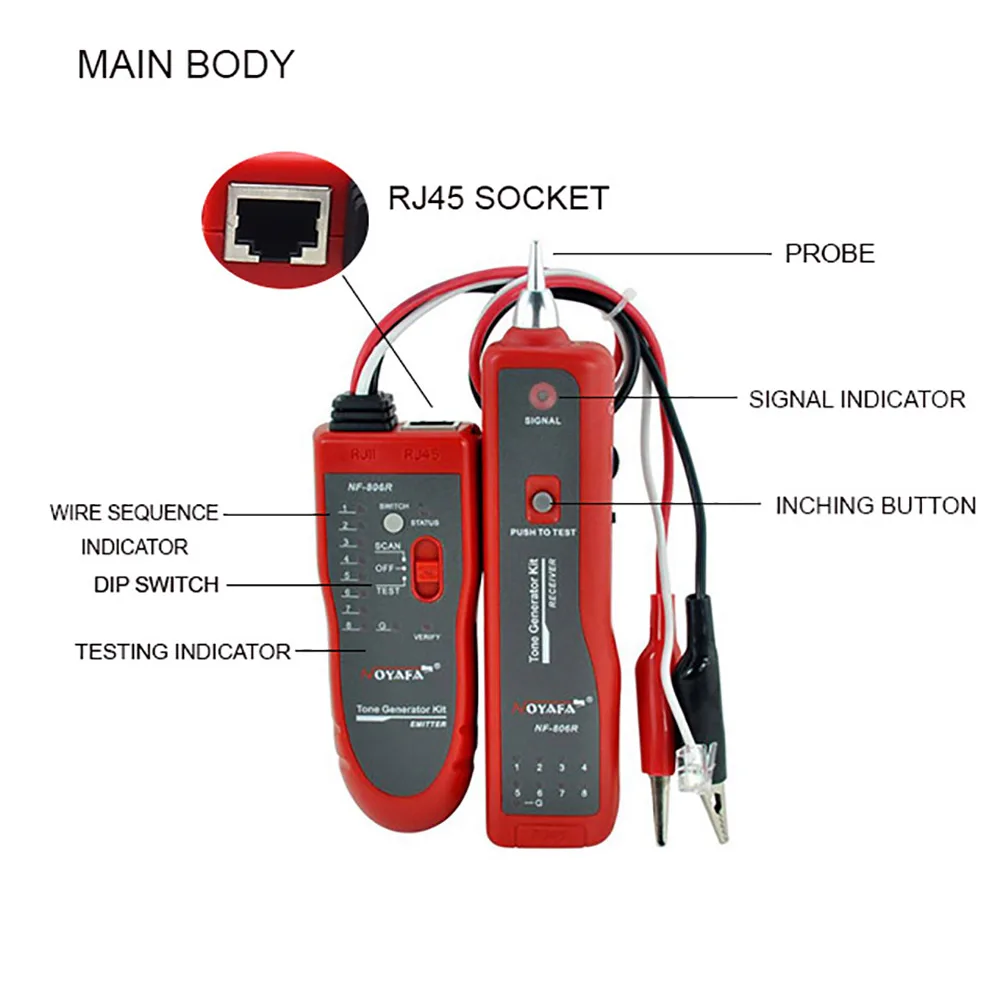

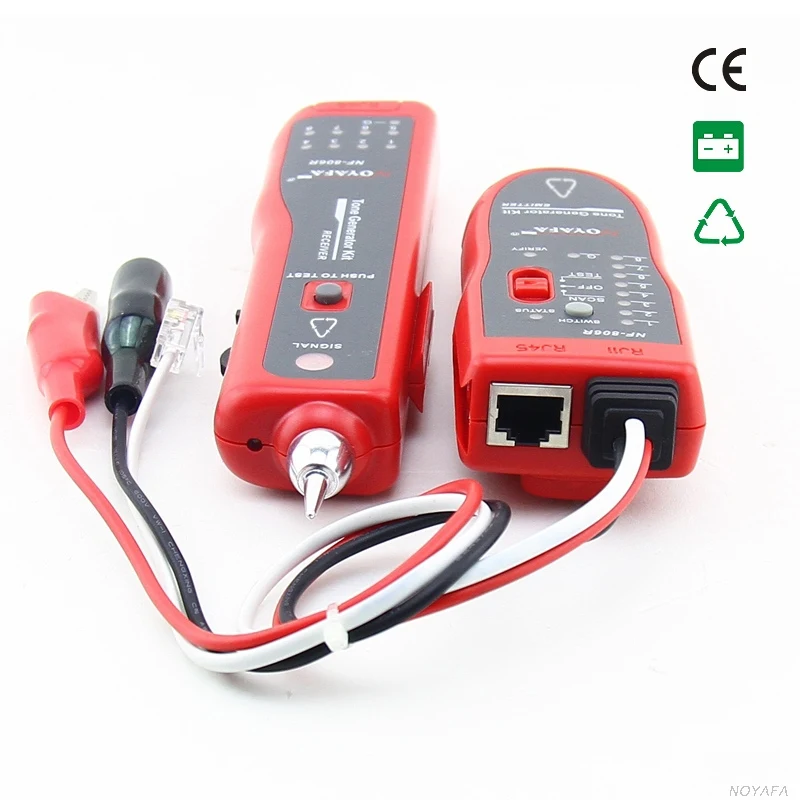

  5. Transmitter with RJ11 connector and pair of alligator clips.

  6. Low Voltage alarm function.

  7. Earphone permits use in noisy environments.

  8.  LED light assists use in dark corners.

Benefits:
1.Light weight, easy to handle
2.Verifies RJ45 and RJ11 conductors.
3.Enables cables to be located even when totally concealed .

Technical indexes:



NF-806 Transmitter specifications
Tone frequency200Hz
Max. distance of transmissionUp to 2 kilometers
Max. working currentLess than 10mA
Volume Regulate FunctionAudio volume level control
Tone mode2 Tones, adjustable
Compatible connectorsRJ45, cable clip with RJ11 connector
Max. signal voltage8Vp-p
LED lights displayWiremap, tone, tracing
Voltage protectionAC 60V/DC 42V
Battery TypeDC9.0V(NEDA 1604/6F22) x 1pc
Dimensions (LxWxD)15 x 3.7 x 2cm
NF-806 Receiver specifications
Frequency200kHz
The Max. working currentLess than 30mA
Earphone jack1
Battery TypeDC9.0V(NEDA 1604/6F22) x1pc
Dimensions (LxWxD)12.2 x 4.5 x 2.3cm



Application:

 1.Trace verify and locate RJ45 and RJ11 wires .

2.Earphone permits use in noisy environments.

3.LED light assists use in dark corners.


NF-806R UTP STP Cat5 Cat6 RJ45 LAN Network Cable Tracer Diagnose Tone
